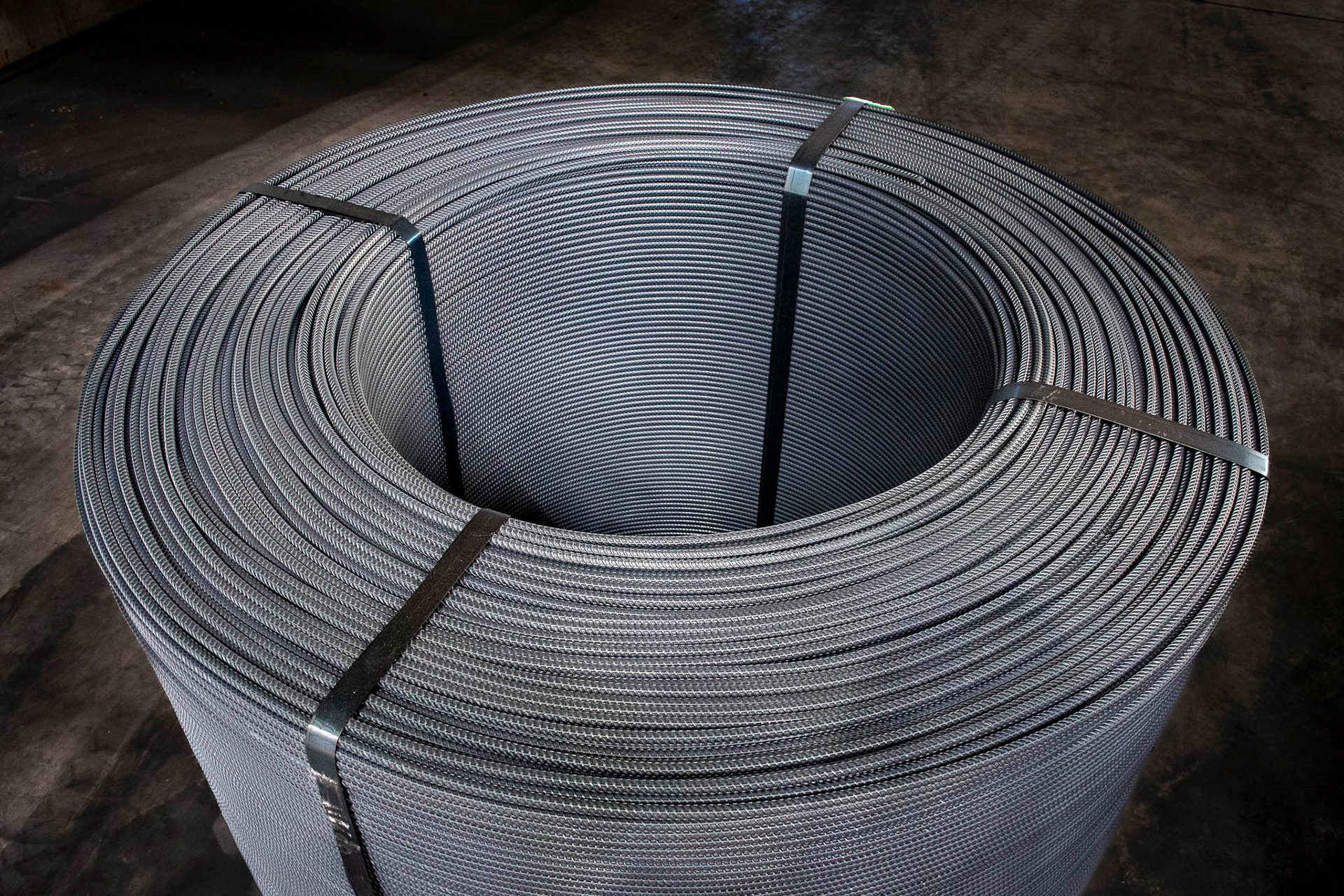

Coiled reinforcing steel, also called coils, can be used as an alternative to reinforcing bars and can be cut and curved to the required length.
Technical data
Coiled reinforcing steel - B500A - cold-formed
Standards: DIN 488 and international standards
| Coil diameter | Coil weight | Coil height |
|---|---|---|
|
Interior: approx. 60 cm (for diameter of 6 – 12 mm) |
approx. 2,0 - 5,0 t | approx. 70 cm respectively approx. 90 cm (at 5,0 t) |
Mechanical properties
| Ductility class | Yield strength Re | Ratio tensile strength / yield strength Rm/Re | Percentage total elongation at maximum force Agt |
|---|---|---|---|
| B500A | ≥ 500 MPa | ≥ 1,05 | ≥ 2,5 % |
Certifications
Coiled reinforcing steel - B500A - cold-formed
Standards: DIN 488 and international standards
| Country | Quality / Diameter range | Certifications |
|---|---|---|
| BELGIUM NBN A 24-301/-303/-305 | B500A Ø 6 - 12 | PROCERTUS-BE-B500A-KR |
| GERMANY DIN 488 | B500A Ø 6 - 12 | MFPA-DE-B500A-KR |
| NETHERLANDS NEN 6008 | B500A Ø 6 - 12 | KOMO-NL-B500A-KR |
| POLAND PN-H-93247-1 | B500A Ø 6 - 12 | SIMPTESTCERT-PL-B500A-KR |
